A Battery Energy Storage System (BESS) is an integrated unit that combines the battery, power electronics, a smart control system, and safety systems. It converts electricity from the grid, solar, or wind into chemical energy through electrochemical reactions and stores it.
BESS Definition
A BESS is a system of batteries plus electronics that stores electricity and releases it on demand.
- It charges from the grid or from renewables like solar and wind.
- It holds the energy as chemical energy inside battery cells.
- It discharges electricity back when demand rises or the grid needs support.
- Software decides when to charge and discharge, making it “smart.”
The U.S. Environmental Protection Agency defines BESS as systems that “help stabilize electrical grids by providing steady power flow despite fluctuations from inconsistent generation of renewable energy sources” (EPA, 2025).
How a BESS Works in 3 Simple Steps
A BESS runs in three main modes—charging, standby, and discharging—all managed automatically by a closed-loop smart control system:
1. Charge
When grid load is low, renewable output is high (like strong midday sun or steady nighttime wind), and electricity is cheap, the EMS sends a charge command. The PCS converts AC to DC, and the BMS balances the pack as it charges, storing the surplus as chemical energy.
2. Hold
When the battery is full, or there’s no need to charge or discharge, the system goes on standby. The BMS keeps monitoring battery status and conditions in real time while the system draws minimal power, ready to respond to dispatch commands at any moment.
3. Discharge
When grid load peaks, electricity is expensive, renewable output falls short, or the grid goes down, the system discharges. The pack releases its stored energy as DC, the PCS inverts it into grid-quality AC, and that power goes to load or back into the grid—shifting energy from one time slot to another.

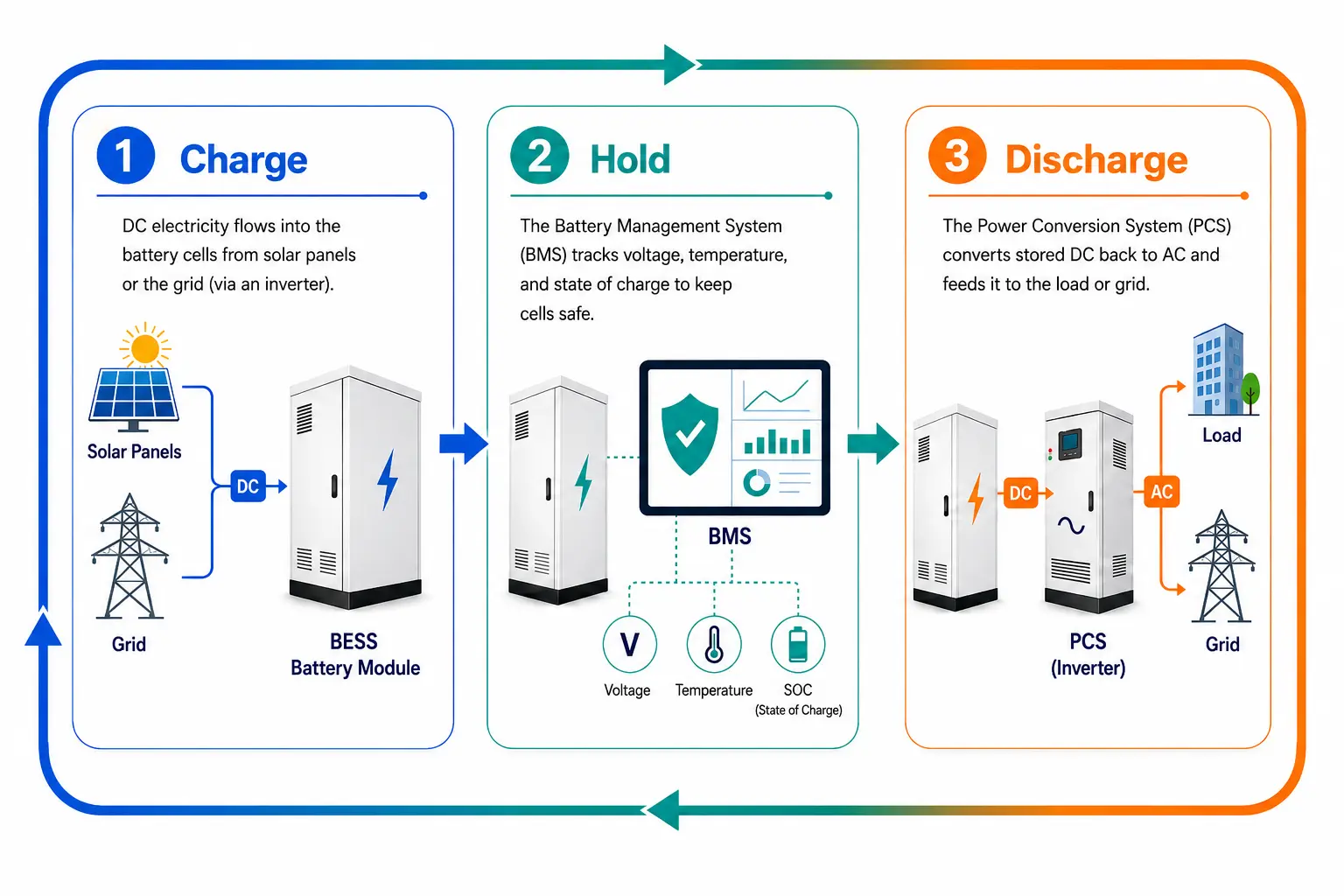

The operational diagram is as follows:

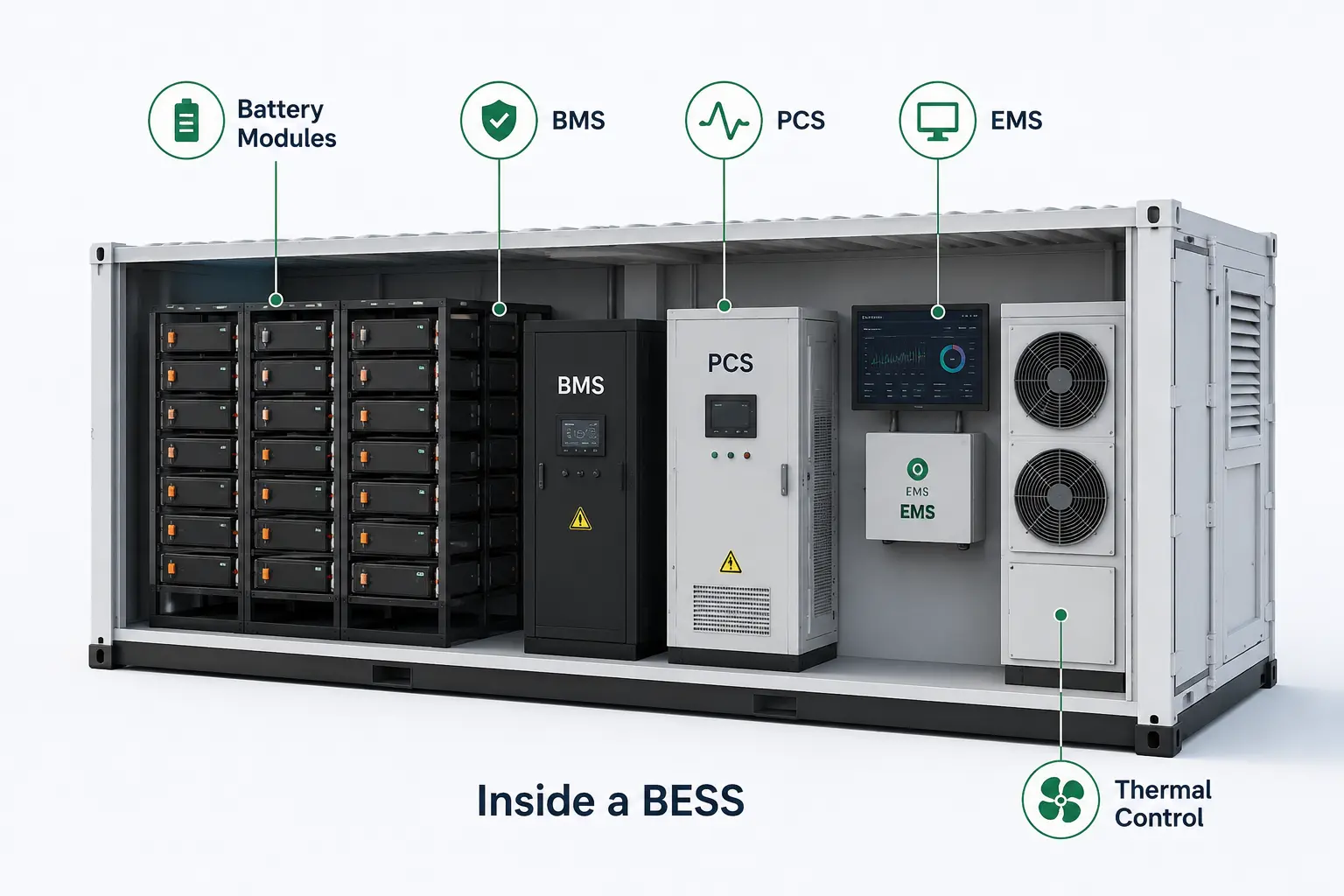

The 4 Key Parts Inside Every BESS
Every BESS, large or small, is built from four core parts plus supporting systems.
Battery Energy Storage System
The battery system is built up in layers—cells and electronic parts form modules, and modules combine into the full battery system. As the storage medium, most systems today use lithium iron phosphate (LFP) batteries for safety, or NMC batteries for higher energy density. Sodium-ion batteries are gaining ground but aren’t yet mainstream.
Power Conversion System (PCS)
The energy-conversion hub. Its core job is two-way power conversion. When charging, it turns grid or renewable AC into DC for the cells; when discharging, it turns the battery’s DC back into AC for the grid or loads. It also regulates output power, voltage, and frequency to meet grid standards, making it essential for power quality.
Intelligent Battery Management System (BMS)
The BMS monitors each cell’s voltage, current, temperature, SOC, and SOH in real time. It handles balanced charging, overcharge and over-discharge protection, and early thermal-runaway warnings to keep the pack safe.
Intelligent Energy Management System (EMS)
The “brain” of the BESS, in charge of overall energy management and scheduling. Based on grid load, electricity prices, and renewable output, it sets charging and discharging strategies and coordinates power allocation, grid connection, and data exchange to maximize returns.
Supporting Systems
These cover temperature control, fire suppression, power distribution and collection, and monitoring and lighting. The temperature-control system uses air or liquid cooling to keep the enclosure at the right temperature, protecting the cells and slowing degradation.
Three Tiers: Utility, Commercial, and Residential
BESS comes in three size classes, each with a different job.
| Tier | Typical Size | Main Purpose | Common Users |
| Utility-scale | 10 MWh – 1+ GWh | Grid services, renewable firming, frequency regulation | Grid operators, IPPs |
| *Commercial & Industrial (C&I) | 50 kWh – 10 MWh | Peak shaving, demand-charge cuts, backup | Factories, data centers, hospitals |
| *Residential | 5–30 kWh | Solar self-use, time-of-use arbitrage, outage backup, EV charging support | Homeowners, large households, small farms / villa |
Utility-scale dominates new capacity. The IRENA 2025 update notes energy shifting (charging cheap, discharging at peak) made up 67% of total storage capacity additions in 2024.
*The residential/C&I boundary isn’t a fixed kWh number, it depends on each country’s grid code and whether the home is single- or three-phase (e.g. three-phase EU/AU homes routinely reach 90+ kWh; single-phase US/Asia typically cap at 20–30 kWh).
Top Applications and Real-World Benefits
BESS solves problems that traditional power plants cannot.
- Renewable firming. Smooths out solar and wind intermittency.
- Peak shaving. Cuts the most expensive part of a facility’s electricity bill.
- Backup power. Keeps critical loads running during outages.
- Ancillary services. Provides sub-second frequency and voltage regulation to grid operators.
- Energy arbitrage. Charges when prices are low, discharges when prices spike.
In Texas, ERCOT reported that the rapid build-out of battery storage and solar contributed to a sharply lower risk of energy emergencies entering 2026, with the chance of rotating outages during the riskiest winter hours falling to roughly 1% — down from around 7% the prior winter.Â
BESS Regulations by Region
Rules differ sharply by region. Knowing them upfront avoids costly project delays. The table below shows the 1–2 most essential standards per market.
| Region | Key Standard(s) | What It Covers |
| United States | NFPA 855 + UL 9540 / 9540A | Installation siting, fire suppression, fire-propagation testing. UL 1741 SB applies to grid-interactive inverters. |
| European Union | IEC 62933 series + Battery Regulation (EU) 2023/1542Â | BESS performance/safety; carbon footprint, recycled content, and recycling targets. |
| Australia | AS/NZS 5139 + Clean Energy Council Approved Battery List | Installation safety; eligibility for state rebates and grid-scale AEMO connection. |
| Singapore | SS 725-1-1:2026 (adopts IEC 62933-5-1:2024 MOD) + SCDF Fire Code ESS provisions | Setback distances, fire-rated compartmentation, storage limits, sprinklers. |
| Philippines | DOE Department Circular DC2026-02-0008 (revises DC2023-04-0008)Â | Updated framework for ESS integration into the grid. |
| South Africa | NRS 097-2-3 + IEC 62619Â | Grid-tied embedded generation; cell-level safety. |
Note on limitations. Project teams should also confirm local fire code, building code, zoning, environmental rules, emergency response requirements, and utility interconnection procedures.
Are BESS Actually Safe?
A properly designed and installed BESS can be operated safely, but lithium-ion battery systems require serious fire planning. The main risk is thermal runaway, where a damaged, overheated, or defective cell releases heat and gases that can spread to nearby cells.
The EPA’s BESS safety guidance says recent incidents have raised legitimate community concerns and that lithium battery fires can be difficult to extinguish, may reignite, and can release harmful gases. It also notes that failure incidents per GWh deployed have decreased as BESS quality and design improve.
Key safety controls include BMS monitoring, thermal management, gas detection, fire-rated enclosure design, spacing, emergency response planning, UL 9540A testing, and compliance with NFPA 855. UL Solutions explains that UL 9540A and NFPA 855 work together to evaluate thermal runaway and fire propagation behavior.
Key Takeaways
A battery energy storage system stores electricity, releases it on demand, and stabilizes the grid in milliseconds. The four core parts — batteries, BMS, PCS, and EMS — stay the same whether the system is 10 kWh or 100 MWh. Before deploying, confirm which regional standards apply and that your equipment is certified.
For homeowners, an all-in-one wall-mounted unit like the residential BESS (6 kW / 5–30 kWh) handles solar self-consumption and outage backup in a single device. For commercial and industrial sites, a pre-integrated cabinet such as the 125 kW / 261 kWh C&I BESS packages all four components into one IP54 enclosure, which shortens engineering and commissioning time.
