HM10-H
The ESY SUNHOME HM10-H is an all-in-one three-phase energy storage system designed for higher power applications. It integrates a 10kW inverter with battery modules, each offering more than 10kWh of capacity. The system supports up to 9 batteries, expandable to 90kWh in total. It supports parallel connectio n of multiple systems and works smoothly with the grid, photovoltaic panels, EV charger, diesel generator, and mobile devices.
With its strong output and flexibility, the HM10-H is well suited for charging stations, large houses, small businesses, farms, supermarkets, and hotels, delivering reliable and efficient power across diverse scenarios.
Document references: HM10-H, HM15 & HM20 Three-Phase Datasheet.
Hybrid Energy Microgrid
Emergency Backup Power Supply
Compatible with DC/DC fast EV Charger
Al & Dynamic Electricity Tariff
5 Layers of Safety Protection
IP66-rated Enclosure

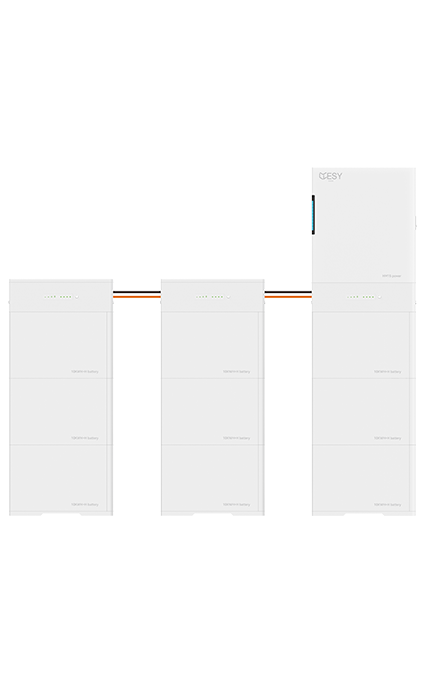

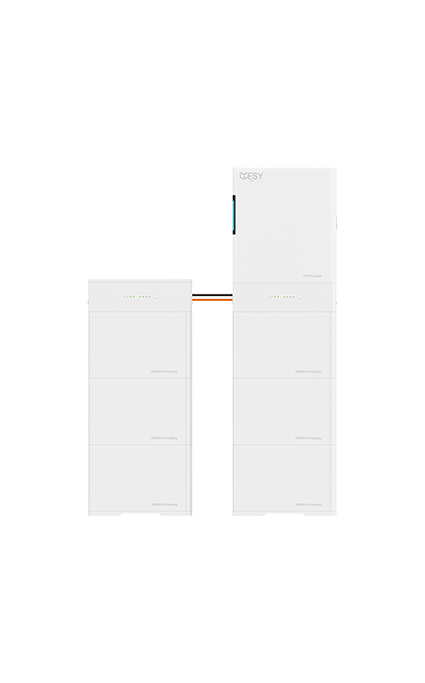

Supports Parallel Connection of Multiple Systems

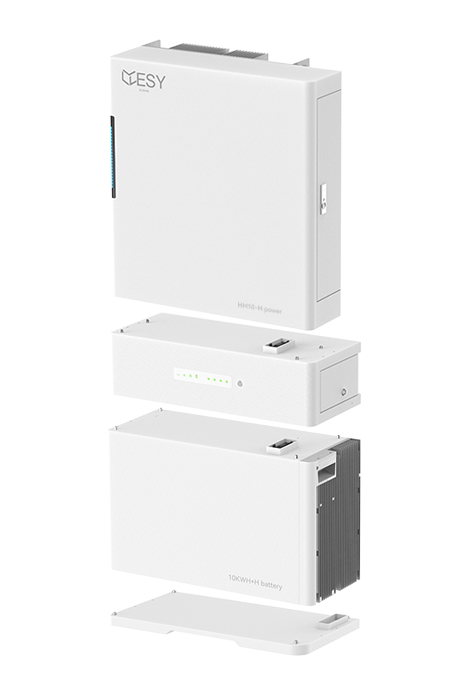

HM10-H Residential Energy Storage System (Three-Phase) Component Overview
Inverter
Distribution box
Battery
Base
SPECIFICATION
Phase Configuration
Three-Phase
Max. Output Power
10 kW
Expandable Capacity
10.54~94.86 kWh
Protection Rating
IP66
Dimensions (LxWxH)
600 × 270 × (1725-2131) mm + (660 × 270 × 1448 mm) × (1-2)
Weight
213~818 kg
Operating Temperature Range
-25~60℃
Warranty
10 Years
