HM6
The ESY SUNHOME HM6 is an all-in-one residential energy storage system that pairs a 6kW inverter with modular batteries. Each battery offers 5kWh of capacity, and the system can be expanded with up to 6 units, reaching a total of 30kWh. It works seamlessly with the grid, photovoltaic panels, and mobile devices for reliable integration.
The HM6 ensures steady power supply and provides a range of operation modes such as regular, emergency, electricity sale, and AI. With the ESY SUNHOME App, users can easily view grid conditions, household load, electricity prices, and storage capacity in real time, enabling smarter and more efficient energy use.
Smart Protection with Built-in Fire Extinguisher
Class-leading Charge & Discharge Speed
IP66-Rated Enclosure & Temperature Resistance
Modular Design with Scalable Capacity
10-Year Warranty with Public Liability Insurance
Premium Local Support with 24/7 Monitoring
Virtual Power Plant (VPP) Compatible

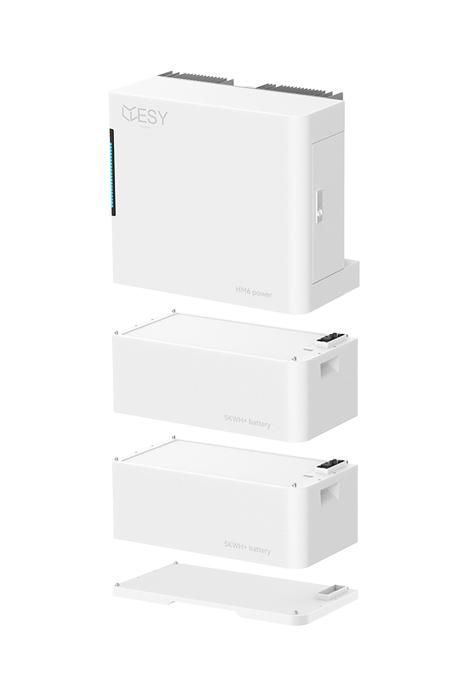

HM6 Residential Energy Storage System (Single-Phase) -Component Overview
Inverter
Connector
Battery
Base
SPECIFICATION
Phase Configuration
Single-Phase
Max. Output Power
6 kW
Expandable Capacity
5.12~30.72 kWh
Protection Rating
IP66
Dimensions (LxWxH)
600 × 305 × (778~1878) mm
Weight
93~343 kg
Operating Temperature Range
-25~60℃
Warranty
10 Years
