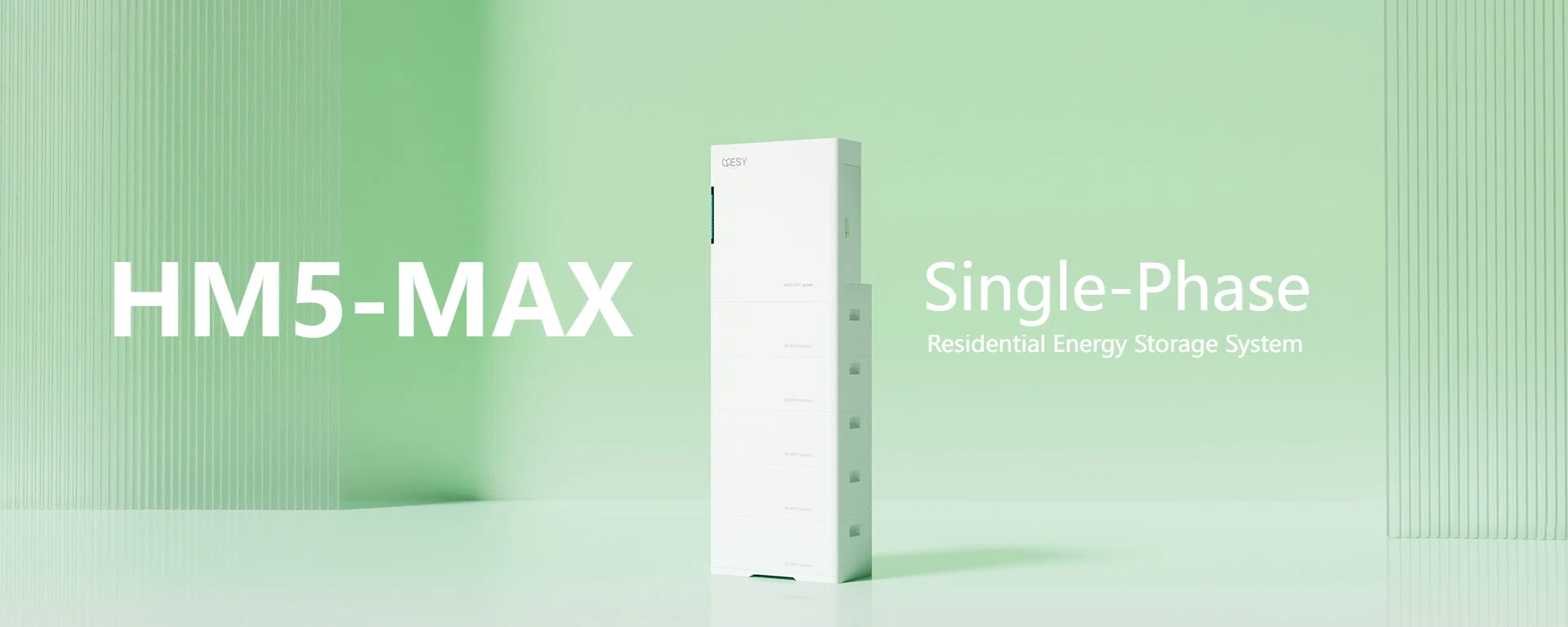

HM5-MAX
The ESY SUNHOME HM5-MAX is a residential all-in-one energy storage solution that brings together a 10kW inverter, which limits grid output power to 5kW, and modular batteries. Each battery unit delivers 5kWh of capacity, and the system can be scaled with up to 6 batteries for a maximum of 30kWh. It works smoothly with the grid, photovoltaic panels, and smart devices.
Designed to provide dependable electricity, the HM5-MAX features multiple operation modes such as regular, emergency, electricity sale, and AI. With the ESY SUNHOME App, users can track grid performance, household load, energy prices, and storage capacity in real time, making power usage more flexible and efficient.
Smart Protection with Built-in Fire Extinguisher
Class-leading Charge & Discharge Speed
IP66-Rated Enclosure & Temperature Resistance
Modular Design with Scalable Capacity
10-Year Warranty with Public Liability Insurance
Premium Local Support with 24/7 Monitoring
Virtual Power Plant (VPP) Compatible
HM5 Residential Energy Storage System (Single-Phase) Component Overview
Inverter
Connector
Battery
Base
SPECIFICATION
Phase Configuration
Single-Phase
Max. Output Power
10 kW
Expandable Capacity
5.12~30.72 kWh
Protection Rating
IP66
Dimensions (LxWxH)
600 × 305 × (908~2008) mm
Weight
113~363 kg
Operating Temperature Range
-25~60℃
Warranty
10 Years
