HM12

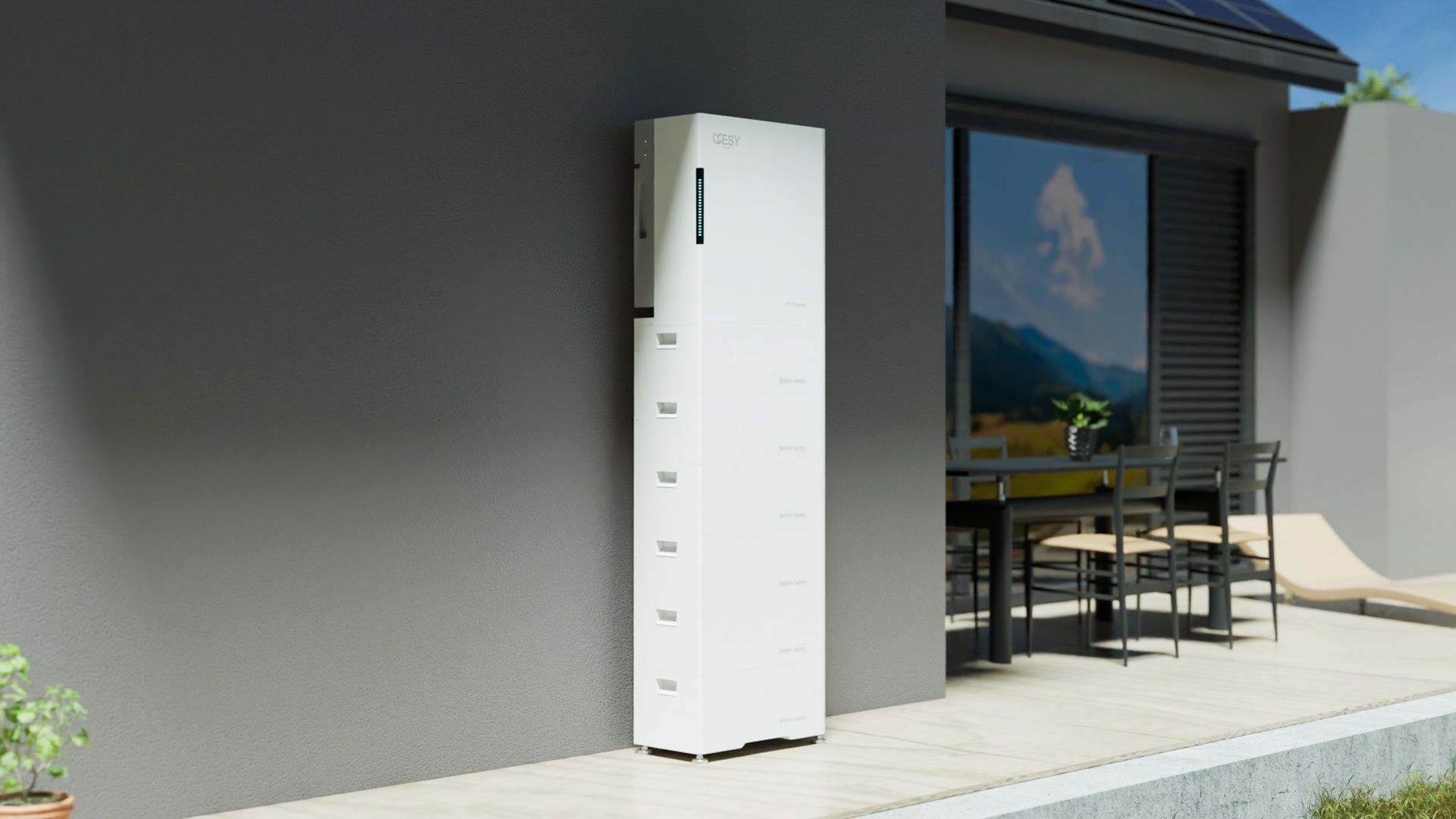

The ESY SUNHOME HM10 is an all-in-one residential energy storage system that combines a 10kW inverter with modular batteries. Each battery delivers 5kWh of capacity, and the system can be expanded with up to 6 units for a total of 30kWh. It connects seamlessly with the grid, solar panels, and smart devices, ensuring reliable integration for households with higher energy demands.


The HM10 provides consistent and powerful electricity supply with multiple operation modes including normal, off-grid, economic, emergency, and intelligent. Through the ESYSUNHOME App, users can monitor grid conditions, household load, electricity pricing, and storage levels in real time, making energy usage smarter, flexible, and more efficient.


  • Smart Protection  with Built-in  Fire Extinguisher
  • Class-leading Charge & Discharge Speed
  • IP66-Rated Enclosure & Temperature Resistance

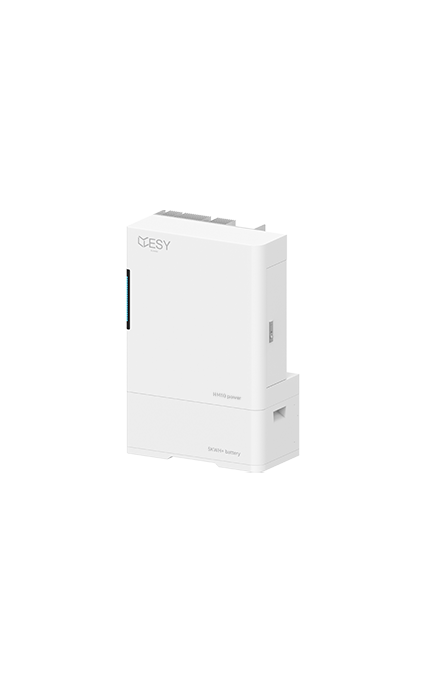

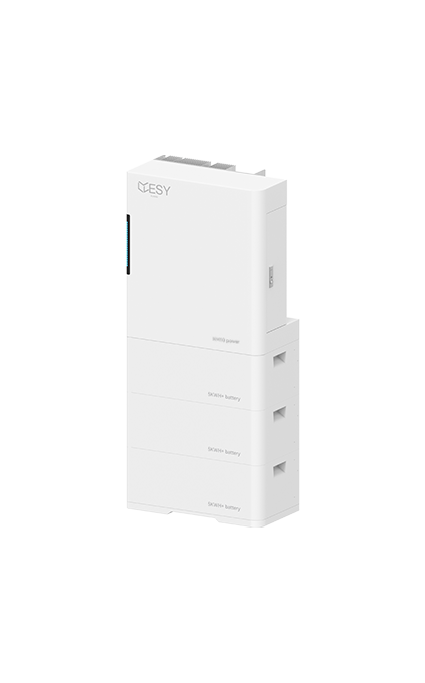

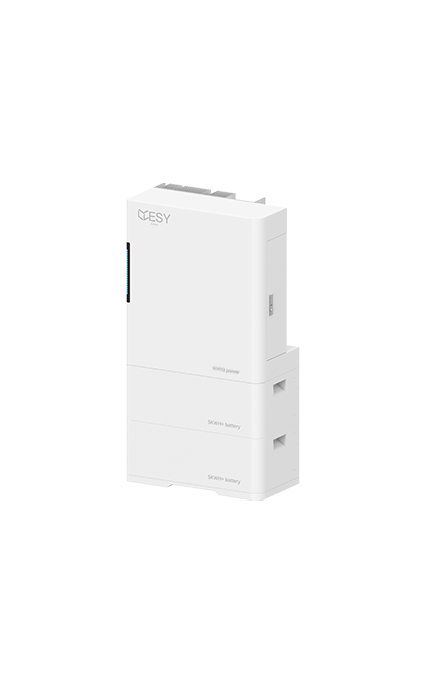

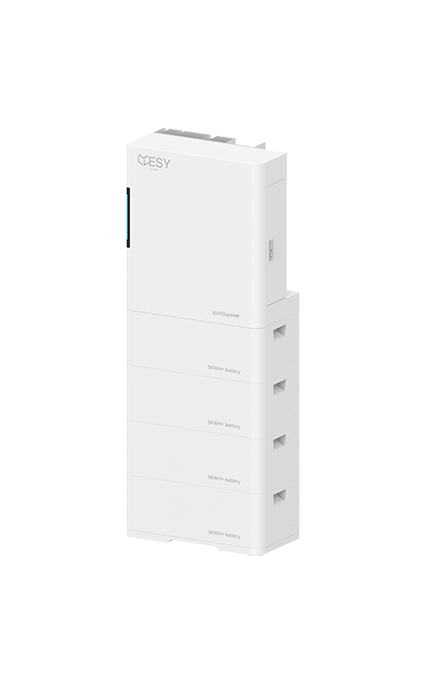

  • Modular Design with Scalable Capacity
  • 10-Year Warranty with Public Liability Insurance
  • Premium Local Support with 24/7 Monitoring
  • Virtual Power Plant (VPP) Compatible

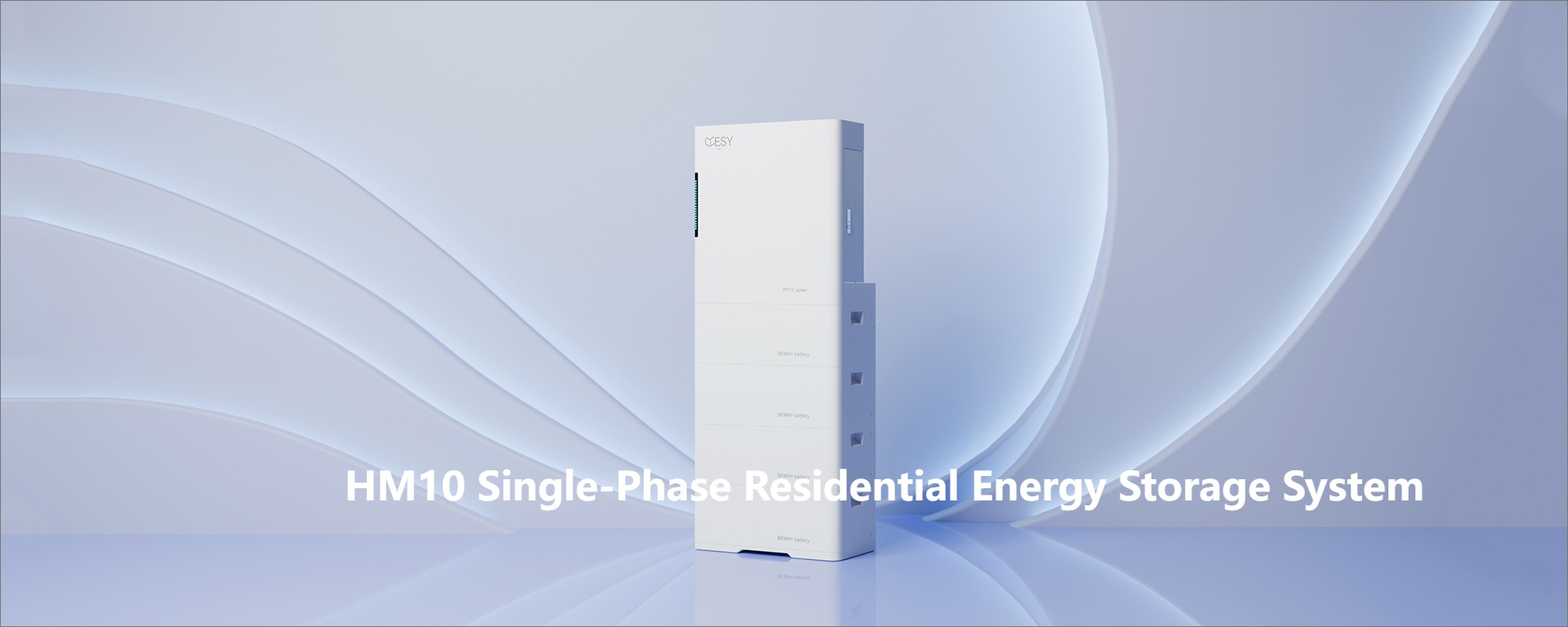

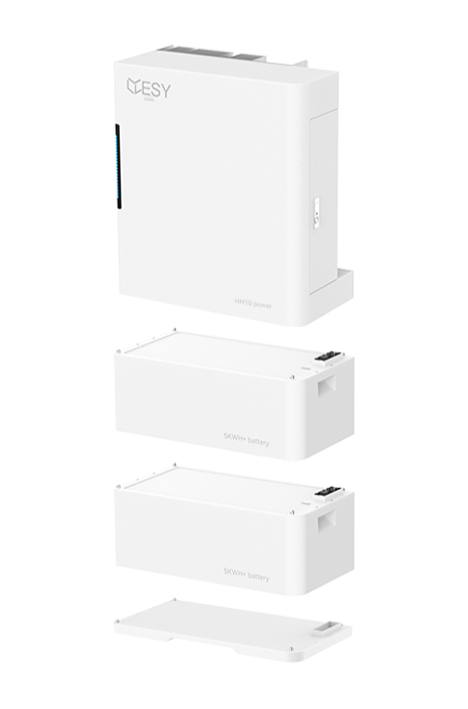

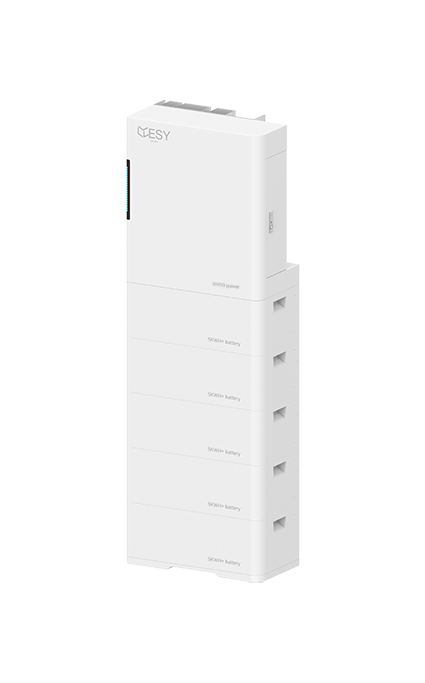

HM10 Residential Energy Storage System (Single-Phase) Component Overview

Inverter
Connector
Battery
Base

SPECIFICATION

Phase Configuration
Single-Phase
Max. Output Power
10 kW

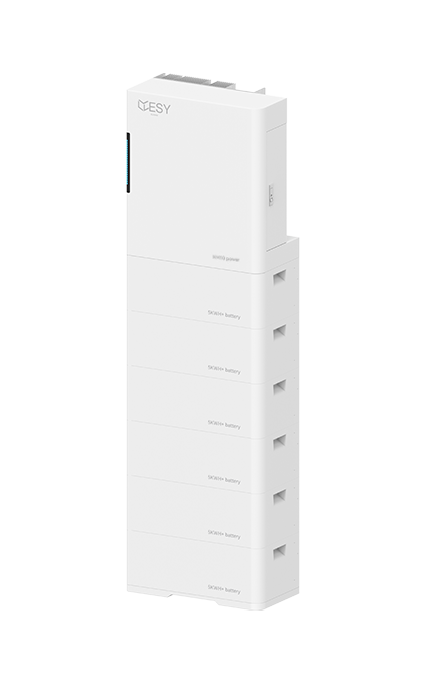

Expandable Capacity
5.12~30.72 kWh
Protection Rating
IP66
Dimensions (LxWxH)
600x305x778 mm
Weight
93 kg
Operating Temperature Range
-25~60℃
Warranty
10 Years
